DSA8300 Sampling y TDR Diferencial





Osciloscopio Tektronix DSA8300 Sampling y TDR diferencial

Hojas de datos

Módulos

Software

Documentos técnicos y notas de aplicación

Manuales del usuario, programador y verificación de especificaciones



Features & Benefits

Highest Fidelity Signal Capture

• Very Low Time-base Jitter
  • 425 fs Typical on up to 8 Simultaneously Acquired Channels
  • <200 fs Typical on up to 6 Channels with 82A04 Phase Reference Module
• Best Vertical Resolution – 16 bit A/D
  • Electrical Resolution: <20 µV LSB (for 1 V full range)
  • Optical Resolution depends on the Dynamic Range of the Optical Module – Ranges from <20 nW for the 80C07B (1 mW full range) to <0.6 µW for the 80C10B (30 mW full range)

Flexible Configurations

• With Today’s Sampling Module Portfolio, the DSA8300 supports up to 8 Simultaneously Acquired Signals
• A Wide Variety of Optical, Electrical, and Accessory Modules to support your Specific Testing Requirements
• Optical Modules
  • Fully Integrated Optical Modules that support all Standard Optical Data Rates from 155 Mb/s to 100 Gb/s
  • Certified Optical Reference Receivers Support Specified Requirements for Standards-mandated Compliance Testing
  • Optical Bandwidths to >80 GHz
  • High Optical Sensitivity and Low Noise as well as the Wide Dynamic Range of the Optical Sampling Modules allows Accurate Testing and Characterization of Short-reach to Long-haul Optical Communications Standards
  • Fully Calibrated Clock Recovery Solutions – No need to manually calibrate for data pick-off losses
  • Calibrated Extinction Ratio Measurements ensure Repeatability of Extinction Ratio Measurements to <0.5 dB among Systems with Modules with this Factory Calibration Option
• Electrical Modules
  • Electrical Bandwidths to >70 GHz
  • Very Low-noise Electrical Samplers (280 µV at 20 GHz, 450 µV at 60 GHz, typical)
  • Selectable Bandwidths (with 80E07, 08, 09, 10) allow the User to Trade-off Sampler Bandwidth and Noise for Optimal Data Acquisition Performance
  • Remote Samplers (80E07, 08, 09, 10) or Compact Sampling Extender Module Cables support Minimal Signal Degradation by allowing the Sampler to be Located in Close Proximity to the Device Under Test
  • World’s Highest-performance Integrated TDR (10 ps typical step rise time) supports Exceptional Impedance Discontinuity Characterization and High Dynamic Range for S-parameter Measurements to 50 GHz

Analysis

• Standard Analysis Capabilities
  • Complete Suite of over 120 Automated Measurements for NRZ, RZ, and Pulse Signal Types
  • Automated Mask Testing with over 80 Industry-standard Masks. New Masks can be Imported into the DSA8300 to support New Emerging Standards. In Addition, Users can Define their own Masks for Automated Mask Testing
  • Vertical and Horizontal Histograms for Statistical Analysis of Acquired Waveforms
  • Vertical, Horizontal, and Waveform Cursors (with measurements)
• Jitter, Noise, BER, and Serial Data Link Analysis is provided through the 80SJNB Basic and Advanced Software Application Options
• Advanced TDR Analysis, S-parameter Measurements, Simulation Model Extraction, and Serial Link Simulation Capabilities are provided through the IConnect^® Software Application Options

High Test Throughput

• High Sample Acquisition Rate up to 300 kS/s per channel
• Efficient Programmatic Interface (IEEE-488, Ethernet, or local processor access) enable High Test Throughput

Applications

• Design/Verification of Telecom and Datacom Components and Systems
• Manufacturing/Testing for ITU/ANSI/IEEE/SONET/SDH Compliance
• High-performance True-differential TDR Measurements
• Impedance Characterization and Network Analysis for Serial Data Applications including S-parameters
• Advanced Jitter, Noise, and BER Analysis
• Channel and Eye Diagram Simulation and Measurement-based SPICE Modeling

Optical Eye Diagram Testing


Passive Interconnect Test


Serial Data Network Analysis


Jitter, Noise, and BER Analysis



Superior Performance with Extraordinary Versatility

The DSA8300 Digital Serial Analyzer is the most versatile tool for developing and testing communications, computers, and consumer electronics which utilize multi-gigabit data transmission. It is used for optical and electrical transmitter characterization as well as compliance verification for devices, modules, and systems used in these products.

In addition, the DSA8300 is well-suited for electrical signal path characterization, whether for packages, PCBs, or electrical cables. With exceptional bandwidth, signal fidelity, and the most extensible modular architecture, the DSA8300 provides the highest-performance TDR and interconnect analysis, most accurate analysis of signal impairments, and BER calculations for current and emerging serial data technology.

Finally, with its exceptional signal fidelity and resolution, the DSA8300 is the gold standard for electrical and optical applications which require ultra-high bandwidths, very fine vertical resolution, low jitter, and/or exceptional time interval accuracy.

The DSA8300 provides unmatched measurement system fidelity with the lowest native instrument jitter floor (425 fs RMS, typical for serial data signals at rates >1.25 Gb/s) that ensures the most accurate acquisition of up to 8 high-bandwidth signals simultaneously. You get additional analysis benefits from the 200 fs acquisition jitter with the Phase Reference module.

The multiprocessor architecture, with dedicated per-slot digital signal processors (DSPs), provides fast waveform acquisition rates, reducing the test times necessary for reliable characterization and compliance verification.

The DSA8300’s versatile modular architecture supports a large and growing family of plug-ins enabling you to configure your measurement system with a wide variety of electrical, optical, and accessory modules that best suit your application now and in the future. With 6 module slots, the DSA8300 can simultaneously accommodate a Clock Recovery module, a precision Phase Reference module, and multiple acquisition modules, electrical or optical, so you can match system performance to your evolving needs. The ability to swap sampling modules without powering down the DSA8300 (available for scopes with firmware versions 6.1 and later) provides additional flexibility in configuring your DSA8300 to changing test needs.

Featuring industry-leading signal fidelity, the family of electrical modules includes bandwidth performance from 20 GHz to >70 GHz, while the optical modules support optical testing from 125 Mb/s to 100 Gb/s and beyond with optical bandwidth exceeding 80 GHz. The DSA8300 supports all of the legacy 8000 Series electrical and optical sampling modules and accessories*¹.

In addition, specialized modules supporting features such as single-ended and differential electrical clock recovery, electrostatic protection for electrical samplers, and connectivity to the popular TekConnect^® probing system brings you the performance of state-of-the-art Tektronix probes for high-impedance and differential probing. Low-impedance probes for 50 Ω probing and for TDR probing are also available.

The raw acquisition performance of the DSA8300 and its sampling modules and accessories is further augmented by the comprehensive measurement and analysis capabilities of the DSA8300 and its associated software applications. For example, the IConnect^® software applications provide complete TDR, S-parameter, and signal integrity analysis for passive electrical interconnects (packages, printed circuit boards, backplanes, cable, etc.) while the 80SJNB applications provide complete jitter, noise, and bit error rate analysis as well as channel and equalization analysis and emulation for both optical and electrical serial data links.

*¹ The DSA8300 does not support the 80A06 Pattern Synchronization module as this capability is superseded by the integrated Advance Trigger option (Option ADVTRIG) for the DSA8300.

Jitter, Noise, BER, and Serial Data Link Analysis

High-speed serial data link measurements and analysis are supported with three software solutions: 80SJARB, 80SJNB Essentials, and 80SJNB Advanced.*²

• 80SJARB (Option JARB) is a basic jitter measurement tool capable of measuring jitter on any waveform – random or repetitive. The simplicity of acquisition limits the amount of analysis possible so only the simplest decomposition can be used; repeatability is pattern dependent
• 80SJNB Essentials (Option JNB) offers complete analysis of jitter, noise, and BER, with decomposition of components for clear understanding of a signal’s problems and margins. The acquisition methodology requires a repetitive pattern. Both accuracy and repeatability are improved relative to 80SJARB since the tool has access to the complete signal pattern
• 80SJNB Advanced (Option JNB01) adds features to 80SJNB Essentials for serial data link analysis – de-embedding of fixture, channel emulation, FFE/DFE equalization, and pre-emphasis/de-emphasis

Jitter Analysis of Arbitrary Data (80SJARB)

The 80SJARB jitter measurement application software for the DSA8300 Series addresses IEEE 802.3ba applications requiring the J2 and J9 jitter measurements. It also enables basic jitter measurements for NRZ data signals including PRBS31, random traffic, and scrambled data. This provides an entry-level jitter analysis capability with simple Dual Dirac model jitter analysis and no pattern synchronization requirement. 80SJARB can acquire continuously in Free Run mode, delivering acquisitions and updates beyond the IEEE minimum requirement of 10,000 data points. Plots include jitter bathtub curves for both measured and extrapolated data, as well as a histogram of the acquired data.

80SJARB Jitter Analysis

Measurement	Description
J2	Total jitter for BER = 2.5e–3
J9	Total jitter for BER = 2.5e–10
Tj	Total jitter for BER = 1.0e–12
DJdd	Deterministic jitter (Dual Dirac model)
RJdd	Random jitter (Dual Dirac model)

Free Run Mode: For continuous acquisitions and updates beyond the IEEE minimum requirement of 10,000 data points.

Plots: Jitter / Eye Opening Bathtub, Histogram of Acquired Data.

80SJNB Jitter and Noise Analysis Measurements

80SJNB Jitter Analysis

Measurement	Description
TJ at BER	Total jitter at specified BER
J2	Total jitter for BER = 2.5e–3
J9	Total jitter for BER = 2.5e–10
RJ	Random jitter
RJ(h)	Horizontal component of random jitter
RJ(v)	Vertical component of random jitter
RJ(d-d)	Random jitter according to the Dual Dirac model
DJ	Deterministic jitter
DDJ	Data-dependent jitter
DDPWS	Data-dependent pulse width shrinkage
DCD	Duty cycle distortion
DJ(d-d)	Deterministic jitter computed in the Dual Dirac model
PJ	Periodic jitter
PJ(h)	Horizontal component of periodic jitter
PJ(v)	Vertical component of periodic jitter
EO at BER	Horizontal eye opening at specified BER
BUJ	Bounded uncorrelated jitter
NPJ	Non-periodic jitter (uncorrelated and bounded)
SSCMagnitude	Magnitude of SSC modulation in ppm
SSCFrequency	Frequency of SSC modulation in ppm

80SJNB Noise Analysis

Measurement	Description
RN	Random noise
RN(v)	Vertical component of random noise
RN(h)	Horizontal component of random noise
DN	Deterministic noise
DDN1	Data-dependent noise on logical level 1
DDN0	Data-dependent noise on logical level 0
PN	Periodic noise
PN(v)	Vertical component of periodic noise
PN(h)	Horizontal component of periodic noise
EO at BER	Vertical eye opening at specified BER
BUN	Bounded uncorrelated noise
NPN	Non-periodic noise

80SJNB Advanced Supports:

• FFE (Feed Forward Equalization) to 100 Taps
• DFE (Decision Feedback Equalization) to 40 Taps
• Filter for support of linear filters from fixture de-embed to transmitter equalization. Channel emulation supported for channels with >30 dB of loss at 1st harmonic frequency

*² These software applications can be purchased to install on currently owned DSA8300 oscilloscopes with the DSA83UP upgrade kits.

TDR (Time Domain Reflectometry) Applications

The DSA8300 is the industry’s highest-performance fully integrated Time Domain Reflectometry (TDR) measurement system. Offering true-differential TDR measurements up to 50 GHz bandwidth with 15 ps reflected rise time and 12 ps incident rise time*³, the DSA8300 enables you to keep pace with today’s most demanding Serial Data Network Analysis (SDNA) requirements.

The 80E10 and 80E08 TDR modules feature a fully integrated independent dual-channel 2-meter remote sampler system to minimize fixturing and assure optimal system fidelity. Independent sampler deskew ensures fast and easy fixture and probe de-embedding. The user can characterize differential crosstalk by using TDR steps from a differential module to drive one line pair while monitoring a second line pair with a second differential module.

The DSA8300 is the industry’s most versatile TDR measurement system, accommodating up to 4 dual-channel true-differential TDR modules for fast, accurate multilane impedance and S-parameter characterization.

The P80318 True-differential TDR probe and P8018 Single-ended Passive Handheld TDR probe provide high-performance probing solutions for circuit board impedance and electrical signal characterization. The P80318, an 18 GHz 100 Ω input-impedance differential TDR hand probe, enables high-fidelity impedance measurements of differential transmission lines. The adjustable probe pitch enables a wide variety of differential line spacing and impedances. The P8018 is a 20 GHz Single-ended Passive Handheld TDR probe. Both the P80318 and P8018 can be used as stand-alone probes but are especially designed to work with the 80A02 for the control of EOS/ESD protection.

*³Rise times are 10-90%. Typical reflected rise times for the 80E10 are <10 ps.

Multi-gigabit Signal Path Characterization and Analysis – Serial Data Network Analysis (SDNA)

As clock speeds and rise times of digital circuits increase, interconnect signal integrity dramatically affects digital system performance. Accurate and efficient Serial Data Network Analysis (SDNA) of the signal path and interconnects in time and frequency domains is critical to predict signal losses, jitter, crosstalk, terminations and ringing, digital bit errors, and eye diagram degradation, ensuring reliable system operation.

Tektronix offers several true-differential TDR modules, which in combination with IConnect^® software allow S-parameter measurements with up to –70 dB of dynamic range. This performance assures accurate, repeatable measurements in serial data analysis, digital design, signal integrity, and electrical compliance testing applications.

TDR Module Performance with IConnect^®

TDR Module	S-parameter Measurement Bandwidth Performance
80E10	50 GHz
80E08	30 GHz
80E04	20 GHz

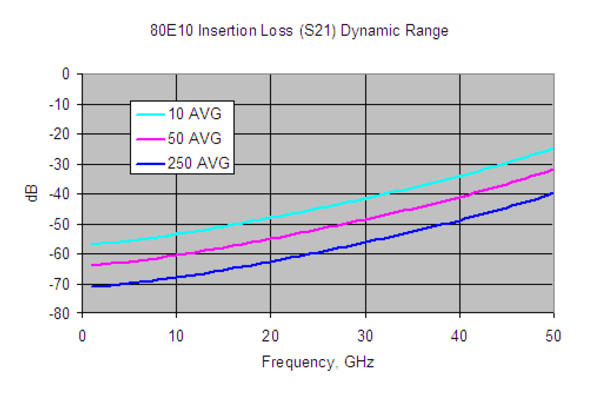

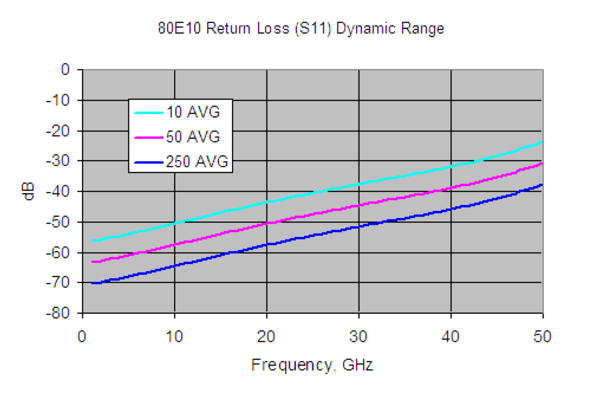

With the long record length acquisitions, IConnect^® provides great flexibility for obtaining the desired frequency range and frequency step when performing S-parameter measurements. Up to 1,000,000 points can be acquired.

When you employ IConnect^® Signal Integrity TDR and S-parameter software with the DSA8300 you have an efficient, easy-to-use, and cost-effective solution for measurement-based performance evaluation of multi-gigabit interconnect links and devices, including signal integrity analysis, impedance, S-parameter, and eye-diagram tests, and fault isolation. IConnect^® can help you complete interconnect analysis tasks in minutes instead of days, resulting in faster system design time and lower design costs. IConnect^® also enables impedance, S-parameters, and eye-diagram compliance testing as required by many serial data standards, as well as full channel analysis, Touchstone (SnP) file output, and SPICE modeling for multi-gigabit interconnects.

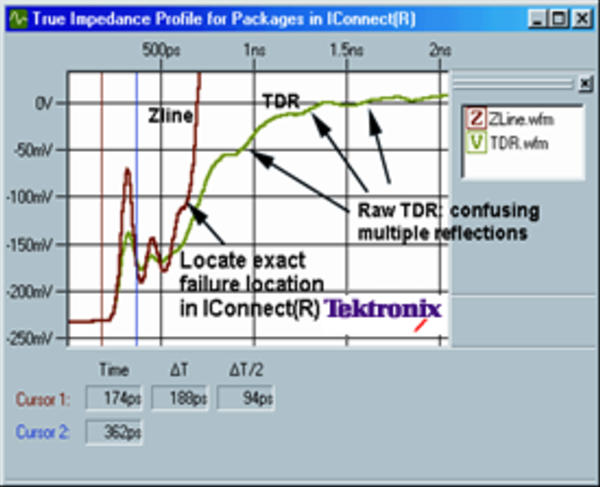

Failure Analysis – Quickly Identify Fault Location

Quickly identify the exact location of faults with the 80E10 sub-millimeter resolution and IConnect^® True Impedance Profile.

The 80E10, with its 12 ps typical TDR rise time, provides superior resolution enabling the fastest and most efficient fault isolation in package, circuit board, and on-chip failure analysis applications.

IConnect^® Signal Integrity TDR and S-parameter Software

Operating on the DSA8300 TDR platform, IConnect^® S-parameters is the most cost-effective and highest throughput approach for S-parameter measurements in digital design, signal integrity analysis, and interconnect compliance testing, providing as much as 50% cost savings compared to similar bandwidth VNAs, and dramatically speeding up measurements.

You can also take advantage of the IConnect^® S-parameters command-line interface, which automates the S-parameter measurements to the overall suite of manufacturing tests you perform using your TDR instrument, significantly reducing test time while increasing measurement repeatability.

The simplicity of S-parameter calibration using a reference (open, short, or through), and an optional 50 Ω load makes measurements, fixture de-embedding, and moving the reference plane a snap. Touchstone file format output enables easy S-parameter file sharing for further data analysis and simulations.

Tektronix offers several true-differential TDR modules, which in combination with IConnect^® offers S-parameter measurements up to 50 GHz with up to –70 dB of dynamic range. This performance exceeds requirements for serial data analysis, digital design, and signal integrity applications, resolving down to 1% (–40 dB) accuracy of crosstalk, while electrical compliance testing masks typically call for measurements in the –10 to –30 dB range.

• IConnect^® software allows you to quickly and easily generate SPICE and IBIS models for your PCBs, flex boards, connectors, cables, packages, sockets, and I/O buffer inputs directly from TDR/T or VNA S-parameter measurements
• IConnect^® allows you to display eye diagram degradation, jitter, loss, crosstalk, reflections, and ringing in your digital system
• IConnect^® Linear Simulator allows the designer to link several interconnect channels together to evaluate the total time, frequency domain performance, and eye diagram of the overall channel
• IConnect^® substantially simplifies the signal integrity analysis of the interconnect link, equalization and emphasis component design, and analysis of the interconnect link with transmitter and receiver

For more information regarding the IConnect^® software applications, see the “IConnect^® Signal Integrity, TDR, and S-Parameter SW – 80SICMX • 80SICON • 80SSPAR” data aheet.

High-speed Optical Test Solutions

The DSA8300 with its highly configurable mainframe and a wide variety of optical modules provide complete optical test solutions with superior system fidelity from 125 Mb/s to 100 Gb/s and beyond. The modules cover a range of wavelengths for both single- and multi-mode fibers. Each module can be optionally configured with a number of selectable Optical Reference Receiver (ORR) filters and/or a full bandwidth path. Each module also supports fully calibrated clock recovery solutions (whether integrated into the module or through a data pick-off routed to an external clock recovery module or stand-alone clock recovery instrument).

Shown below is a brief description of each available optical sampling module as well as a selection guide with the key specifications for each module. For more complete information on these modules, see the “Optical Sampling Modules – 80C07B • 80C08C • 80C10B • 80C11 • 80C12B • 80C25GBE” data sheet.

Optical Sampling Modules

Module	Description
80C07B Multirate Datacom and Telecom	The 80C07B module is a broad-wavelength (700 to 1650 nm) multirate optical sampling module optimized for testing datacom/telecom signals from 125 Mb/s to 2.5 Gb/s. With its amplified O/E converter design, this module provides excellent signal-to-noise performance, allowing users to examine low-power optical signals. The 80C07B can be optionally configured with fully calibrated internal clock recovery that supports 125, 155, 622, 1063, 1250, 2125, 2488, 2500, and 2666 Mb/s rates.
80C08C Multirate, Broad Wavelength, High Sensitivity 10 Gb/s	The 80C08C module is a broad-wavelength (700 to 1650 nm) multirate optical sampling module providing datacom rate testing for 10GbE, 40GbE-R4, 100GbE-SR10 applications at 9.953, 10.3125, 11.0957 Gb/s and 10G Fibre Channel applications at 10.51875 and 11.317 Gb/s. The 80C08C also provides telecom rate testing at 9.953, 10.664, and 10.709 Gb/s. With its amplified O/E converter design, this module provides excellent signal-to-noise performance and high optical sensitivity, allowing users to examine low power level optical signals. The 80C08C can be optionally configured with an integrated clock recovery option that supports acquiring signals at any standard- or user-specified rate from 9.8 to 12.6 Gb/s.
80C10B Multirate Datacom and Telecom 40 Gb/s and 100 Gb/s	The 80C10B module provides integrated and selectable-reference receiver filtering, enabling conformance testing at either 1310 or 1550 nm for 39.813 Gb/s (OC-768/STM-256, VSR2000 G.693, 40G NRZ G.959.1), 41.25 Gb/s (40GBASE-FR), and 43.018 Gb/s [G.709 FEC, OTU3, (4×10G LAN PHY)] rates. In addition to these rates, the user may also choose selectable bandwidths of 30, 65, and 80 GHz on the 80C10B for optimal noise vs. bandwidth performance and accurate signal characterization. Option F1 for the 80C10B extends filter selections to include 27.739 Gb/s (100GBASE-LR4 + FEC and 100GBASE-ER4 + FEC) and 25.781 Gb/s (100GBASE-LR4 and 100GBASE-ER4 ). When equipped with Option CRTP, an electrical signal pick-off is provided for clock recovery. Clock recovery to 28.6 Gb/s for the 80C10B is provided using the CR286A clock recovery instrument (sold separately). The 80C10B is also optionally available in a bundled ordering configuration which includes a 70+ GHz electrical sampling channel.
80C11 Multirate 10 Gb/s Datacom and Telecom	The 80C11 module is a long-wavelength (1100 to 1650 nm) multirate optical sampling module optimized for testing 10 Gb/s datacom and telecom standard rates at 9.953, 10.3125, 10.51875, 10.664, 10.709, 11.0957, 11.317, and 14.025 Gb/s. With its high optical bandwidth of up to 30 GHz (typical) it is well-suited for general-purpose high-performance 10 Gb/s optical component testing. The 80C11 can be optionally configured with clock recovery that can support any standard or user-defined rate in the continuous range from 9.8 to 12.6 Gb/s.
80C12B Multirate Datacom and Telecom	The 80C12B module is a broad wavelength (700 to 1650 nm) multirate optical sampling module providing telecom and datacom testing for standards from 155 Mb/s to 11.4 Gb/s. This highly flexible module can be configured to support a wide variety of 10 Gb/s applications, lower data rate applications (155 Mb/s to 7.4 Gb Gb/s), or a combination of 10G and lower data rate standards. The low data rate applications include: Telecom applications from 155 to 2666 Mb/s, 1G, 2G, and 4G Fibre Channel, multilane standards such as 10GBASE-X4 and 4-Lane 10 Gb/s Fibre Channel, and Infiniband SDR and DDR rates. The supported 10 Gb/s application includes both datacom and telecom standards. The supported 10 Gb/s datacom applications include 10GbE, 40GbE-R4, 100GbE-SR10 applications at 9.953, 10.3125, 11.0957 Gb/s, and 10G Fibre Channel applications at 10.51875 Gb/s and 11.317 Gb/s. The 80C12B also provides telecom rate testing at 9.953, 10.664, and 10.709 Gb/s. With its amplified O/E converter design, this module provides excellent signal-to-noise performance and high optical sensitivity, allowing users to examine low-power optical signals. Clock recovery for the 80C12B is provided using the 80A05 module or CR125A clock recovery instrument (sold separately).
80C14 Multirate Datacom and Telecom	The 80C14 module is a broad-wavelength (700 to 1650 nm) multirate optical sampling module providing 8G, 10G, and 16G telecom and datacom testing. The supported 10 Gb/s datacom applications include: 10GbE, 40GbE-R4, 100GbE-SR10 applications at 9.953, 10.3125, and 11.0957 Gb/s. Fibre Channel applications include: 8.500, 10.51875, 11.317, and 14.025 Gb/s. The 80C14 also provides telecom rate testing at 9.953, 10.664, 10.709, and 12.5 Gb/s. With its amplified O/E converter design, this module provides excellent signal-to-noise performance and high optical sensitivity, allowing users to examine low power level optical signals. Clock recovery for the 80C14 is provided by the CR175A or CR286A (sold separately).
80C25GBE Multirate Datacom 100 Gb/s (4 × 25 Gb/s)	The 80C25GBE module provides 65 GHz full-bandwidth, integrated, and selectable-reference receiver filtering, enabling conformance testing at either 1310 or 1550 nm for 27.739G (100GBASE-LR4+FEC and 100GBASE-ER4+FEC) and 25.781G (100GBASE-LR4 and 100GBASE-ER4). When equipped with Option CRTP an electrical signal pick-off is provided for clock recovery. Clock recovery for the 80C25GBE is provided using the CR286A clock recovery instrument (sold separately).

Optical Sampling Module Selection Guide

Characteristic	80C07B*4	80C08C	80C12B*5		80C14	80C11	80C25GBE	80C10B*6
			Opt. F0-F12	Opt. 10G/10GP				Std.	Opt. F1
In the table below is shown the key specifications for each of the current optical sampling modules available for use with the DSA8300 to assist you in selecting the optical module(s) most appropriate for your optical testing application. Detailed specifications are available in the 80Cxx Optical Sampling Modules data sheet.
Wavelength Range (nm)	700-1650	700-1650	700-1650	700-1650	700-1650	1100-1650	1290-1330 1520-1620	1290-1330 1520-1620	1290-1330 1520-1620
Unfiltered Optical Bandwidth (GHz)	2.5	10	12*7	12*7	12	30	65	80	65
Fiber Input (µm)	9, 50, 62.5	9, 50, 62.5	9, 50, 62.5	9, 50, 62.5	9, 50, 62.5	9	9	9	9
Mask Test Sensitivity (dBm)	–22	–16*8	–19	–15	–15	–9	–8*9	–7*9	–8*9
Optical Reference Receivers Supported
155 Mb/s	▪		▪
622 Mb/s	▪		▪
1.063 Gb/s	▪		▪
1.250 Gb/s	▪		▪
2.125 Gb/s	▪		▪
2.488 Gb/s	▪		▪
2.500 Gb/s	▪		▪
2.66 Gb/s			▪
3.125 Gb/s			▪
3.188 Gb/s			▪
4.250 Gb/s			▪
5.000 Gb/s			▪
6.144 Gb/s			▪
7.373 Gb/s			▪
8.500 Gb/s				▪	▪	▪
9.953 Gb/s		▪		▪	▪	▪
10.31 Gb/s		▪		▪	▪	▪
10.51 Gb/s		▪		▪	▪	▪
10.66 Gb/s		▪		▪	▪	▪
10.71 Gb/s		▪		▪	▪	▪
11.1 Gb/s		▪		▪	▪	▪
11.3 Gb/s		▪		▪	▪	▪
14.025 Gb/s					▪	▪
14.063 Gb/s					▪	▪
25.78 Gb/s							▪		▪
27.74 Gb/s							▪		▪
39.81 Gb/s								▪	▪
41.25 Gb/s								▪	▪
43.02 Gb/s								▪	▪

*⁴There are specific reference receiver groupings supported for the 80C07B, see the 80Cxx Optical Module data sheet for detailed information.

*⁵There are specific reference receiver groupings supported for the 80C12B, see the 80Cxx Optical Module data sheet for detailed information.

*⁶The clock recovery trigger pick-off (Option CRTP) for the 80C10B can support trigger pick-off for data rates to >43 Gb/s.

*⁷The full 12 GHz bandwidth for the 80C12B is only available with Option F0, 10G, or 10GP.

*⁸Mask test sensitivity of the 80C08C reduced by ~1 dBm with internal clock recovery options.

*⁹Mask test sensitivity of the 80C10B and 80C25GBE reduced by ~0.6 dBm with internal clock recovery trigger pick-off (Option CRTP).

Clock Recovery for Optical Testing

In many optical applications, there is no data clock directly available to provide a reference signal for acquiring the signals from the device under test. In these situations, it is necessary to recover the clock from the data signal. The Tektronix 8000 Series of sampling oscilloscope products provides a complete complement of clock recovery solutions to meet this need. Each of these solutions is fully calibrated so that users do not need to do any manual calibration of the system to take into account any losses due to data pick-off being routed to the input of the clock recovery unit. Shown below is a clock recovery solutions selection guide with the key specifications for each solution to assist you in selecting the solution(s) most appropriate for your application. For more detailed information on these solutions, see the 80Cxx Optical Sampling Modules data sheet (for clock recovery options integrated into the 80C07B, 80C08C, or 80C11) or the appropriate clock recovery data sheets for stand-alone clock recovery modules or instruments.

Note: The stand-alone clock recovery modules/instruments have electrical inputs and can be used to recover clocks from electrical signals as well as from the electrical data pick-off outputs from the 8000 Series optical sampling modules.

Integrated Clock Recovery Options*¹⁰

Characteristic	80C07B	80C08C			80C11
	Opt. CR1	Opt. CR1	Opt. CR2	Opt. CR4	Opt. CR1	Opt. CR2	Opt. CR3	Opt. CR4
Continuously Variable Rate Range (Gb/s)	Fixed Rates	Fixed Rates	Fixed Rates	9.8 - 12.6	Fixed Rates	Fixed Rates	Fixed Rates	9.8 - 12.6
Clock Recovery Sensitivity (dBm)*11	–22	–15	–15	–15	–9	–9	–9	–9
Standard Rates Supported
125, 155 Mb/s	▪
622 Mb/s	▪
1063 Mb/s	▪
1250 Mb/s	▪
2125 Mb/s	▪
2488, 2500 Mb/s	▪
9.95 Gb/s		▪		▪	▪	▪	▪	▪
10.31 Gb/s		▪	▪	▪				▪
10.52 Gb/s			▪	▪				▪
10.66 Gb/s				▪		▪		▪
10.71 Gb/s				▪			▪	▪
11.1 Gb/s				▪				▪
11.3 Gb/s				▪				▪
14.025 Gb/s
14.063 Gb/s
25.78 Gb/s
27.74 Gb/s

*¹⁰Clock recovery is integrated into the optical module and controllable from the Trigger Setup menu of the 8000 Series scope.

*¹¹Electrical clock recovery sensitivity is for differential input and varies with the input clock rate. See clock recovery data sheets for more information.

*¹²The clock recovery module plugs into one of the 8000 Series scope's large module slots and is controllable from the Trigger Setup menu.

*¹³Stand-alone clock recovery instrument; controllable from the BERTScope clock recovery instrument control application, accessible from the App menu of the 8000 Series scope.

*¹⁴For more information on clock recovery loop bandwidth and peaking, see clock recovery data sheets.

Measurement and Analysis Tools for Optical Testing Applications

The DSA8300 includes a wide variety of measurement and analysis tools which specifically address optical testing applications. In addition to the standard amplitude and timing parametric measurements (e.g. rise/fall times, amplitude, RMS jitter, RMS noise, frequency, period, etc.) the measurement suite for the DSA8300 includes measurements specifically tailored to measuring optical signals (average optical power, extinction ratio, eye height, eye width, optical modulation amplitude (OMA), etc.). For a complete list of measurements, see the Math/Measurement section of this data sheet.

The DSA8300 also includes standard compliance testing masks for all of the common optical standards from 155 Mb/s to 100 Gb/s. The DSA8300 mask testing system includes the ability to automatically fit standard and user masks to data acquired into a waveform database. Users can also create their own masks for automated mask testing. Histograms and cursor measurements are also available to analyze optical signals acquired by the DSA8300.

Finally, the 80SJNB applications support complete jitter, noise, and BER analysis for optical signals. The advanced version of this software (Option JNB01) supports evaluating the emphasis and equalization on impaired signals.

High-performance Electrical Test Solutions

The DSA8300 is also well-suited for a variety of high-performance electrical applications. With the modular system, users can configure their DSA8300 with a variety of electrical modules that are best suited to their requirements. In the table below is the key specifications for each of the current electrical sampling modules available for use with the DSA8300 to assist you in selecting the electrical module(s) most appropriate for your application. Detailed specifications are available in the 80Exx Electrical Sampling Modules data sheet.

Electrical Sampling Module Selection Guide

Characteristic	80E01	80E03	80E06	80E07	80E09	TDR Modules
						80E04	80E08	80E10
Channels	1	2	1	2	2	2	2	2
Bandwidth	50 GHz	20 GHz	70+ GHz	20/30 GHz (user selectable)	30/40/60 GHz (user selectable)	20 GHz	20/30 GHz (user selectable)	30/40/50 GHz (user selectable)
Step Response at Full Bandwidth (10-90%)	7 ps	17.5 ps	5.0 ps	11.7 ps	5.8 ps	17.5 ps	11.7 ps	7 ps
RMS Noise	1.8 mV	600 µV	1.8 mV	280 µV at 20 GHz 300 µV at 30 GHz	300 µV at 30 GHz 330 µV at 40 GHz 450 µV at 20 GHz	600 µV	280 µV at 20 GHz 300 µV at 30 GHz	300 µV at 30 GHz 370 µV at 40 GHz 600 µV at 60 GHz
Incident TDR Step Rise Time (10-90%)	—	—	—	—	—	23 ps	18 ps	12 ps
Reflected TDR Step Rise Time (10-90%)	—	—	—	—	—	28 ps	20 ps	15 ps
Remote Sampling Capability	w/ optional 2 m 80N01 extender cable	w/ optional 2 m 80N01 extender cable	w/ optional 2 m 80N01 extender cable	Fully integrated 2 m remote cable	Fully integrated 2 m remote cable	w/ optional 2 m 80N01 extender cable	Fully integrated 2 m remote cable	Fully integrated 2 m remote cable

S-parameter Performance Characteristics (80E10)

Measurement Conditions

• All measurements were performed after proper warm up as specified in the DSA8300 manual
• Standard S-parameter dynamic range measurement practices were used to determine the dynamic range of the module
• Uncertainty results were derived from a wide range of devices, with 250 averages
• Better dynamic range can be achieved by selecting lower bandwidth settings on the 80E10 module due to a lower RMS noise floor
• Results apply to single-ended or differential measurements

Dynamic Range

Uncertainty

---
